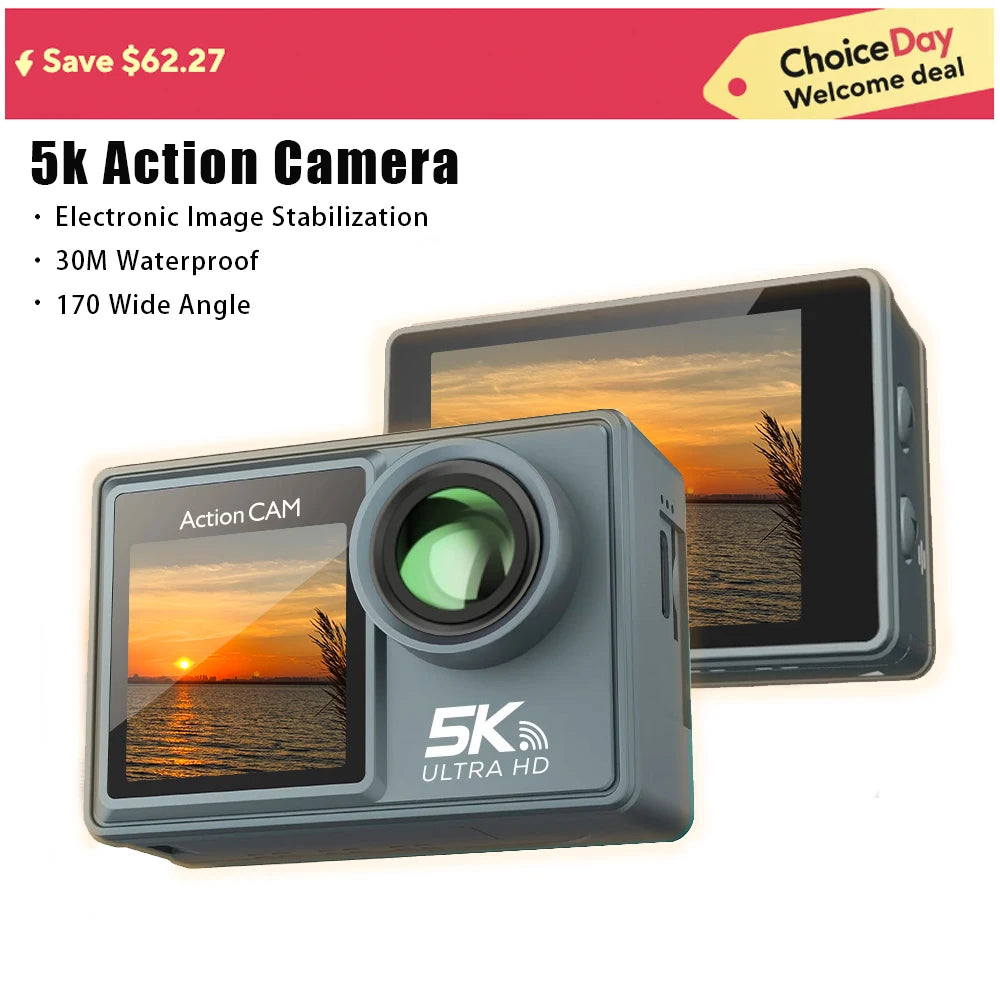

SPECIFICATIONS

Additional Function: Support WIFI

Application: For Home,Extreme Sports,Outdoor Sport Activities,Bicycle,CAR DVR,Diving

Battery Capacity(mAh): 1030mAh

Bluetooth Support: No

Body Extension Interface: Others

Brand Name: cerastes

Built-in Memory Size: Non

Built-in Mic: Yes

Category: Sports & Action Video Cameras

Certification: CE,FCC

Choice: yes

Display Screen: Yes

Display Size: 2.0"

Display screen: Yes

Effective MegaPixel: About 24MP

Expand Microphone: Yes

HDMI-Compatible Output: No

High-concerned chemical: None

Image Sensor: Other SONY Series

Image Stabilization: Electronic Image Stabilization

Input/Output: Other

Main Processor ( Maximum HD Support): Icatch V35 (4K/30fps)

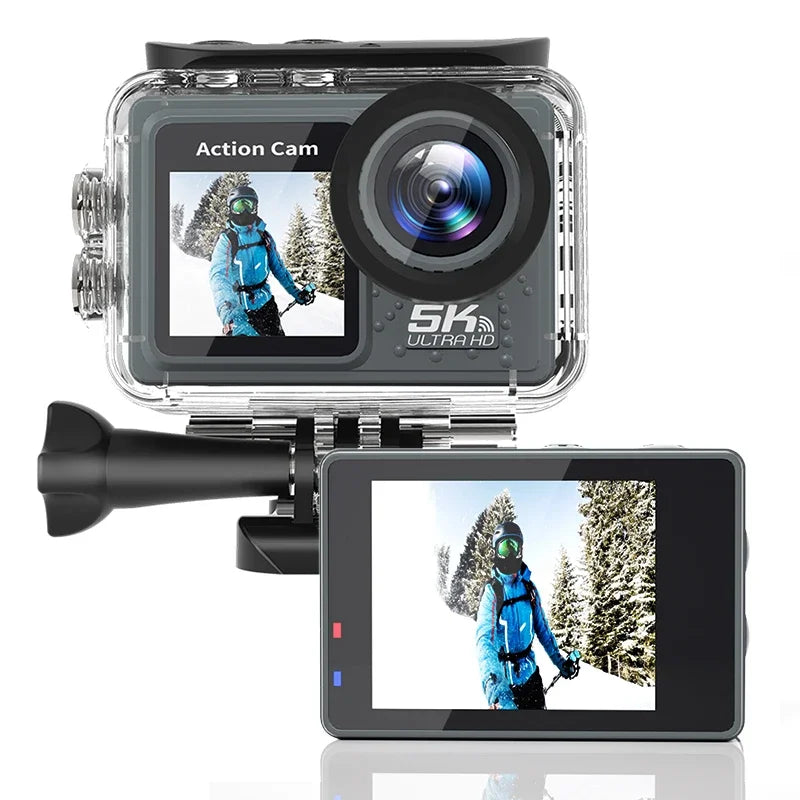

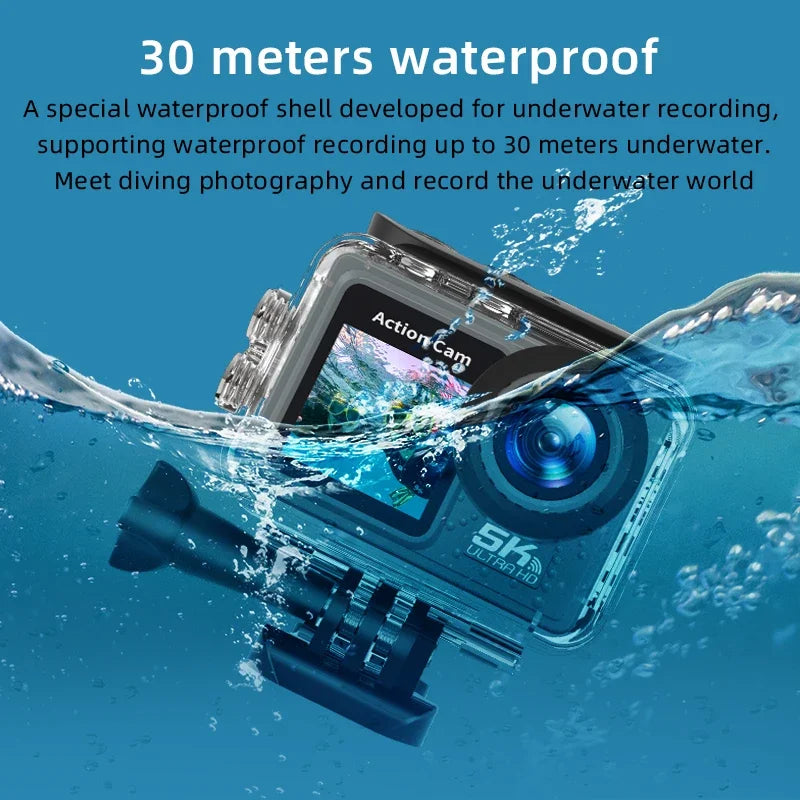

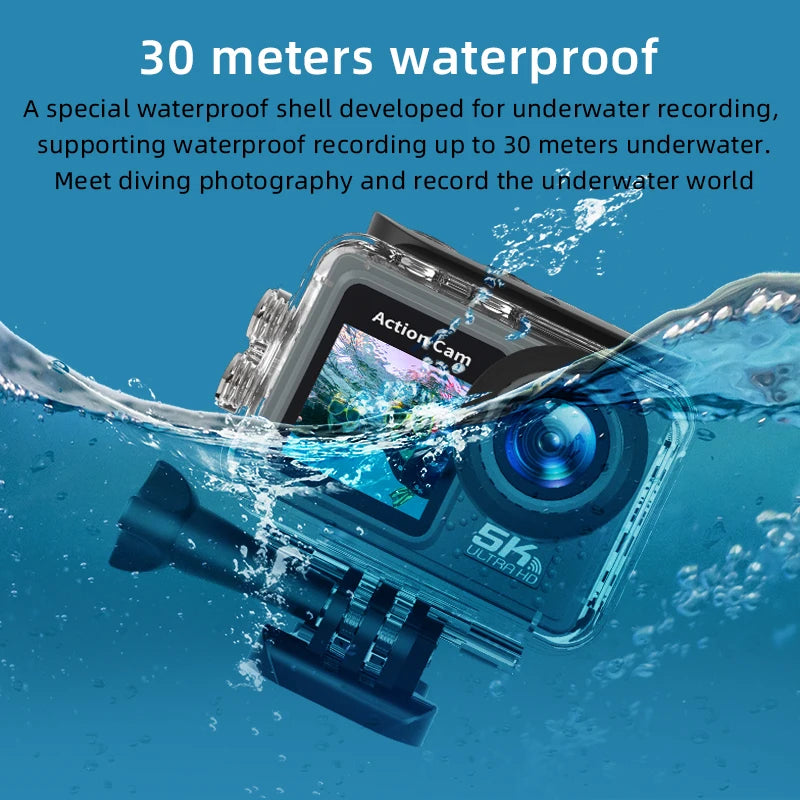

Max depth[m]: 30m

Memory Card Support: 128G

Memory Card Type: MicroSD / TF

NFC Support: No

NightShot Function: No

Operating Temperature[°C]: -10°C / +55°C

Origin: Mainland China

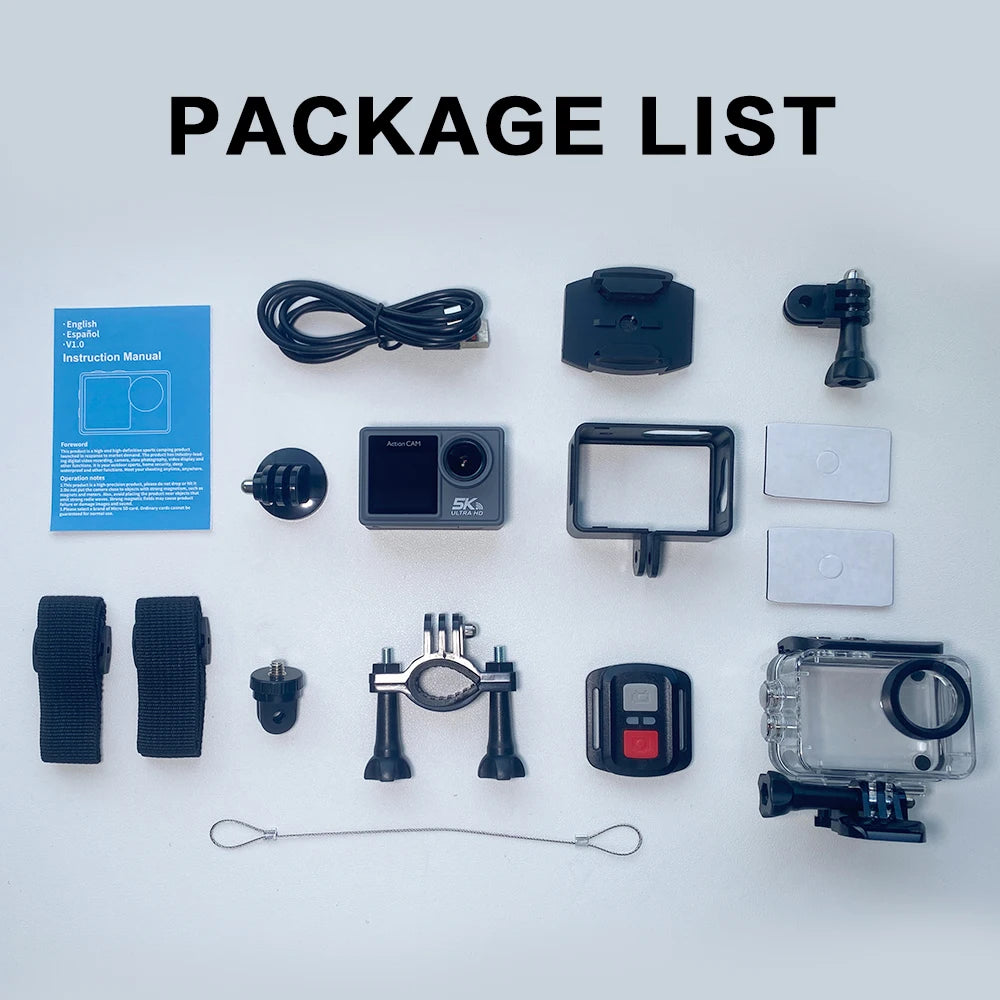

Package: Yes

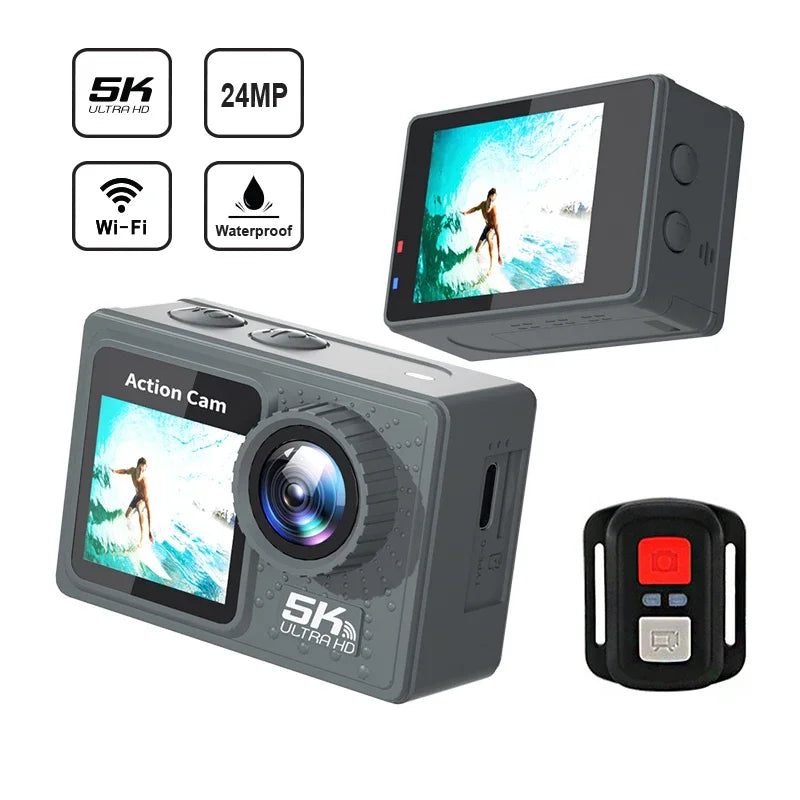

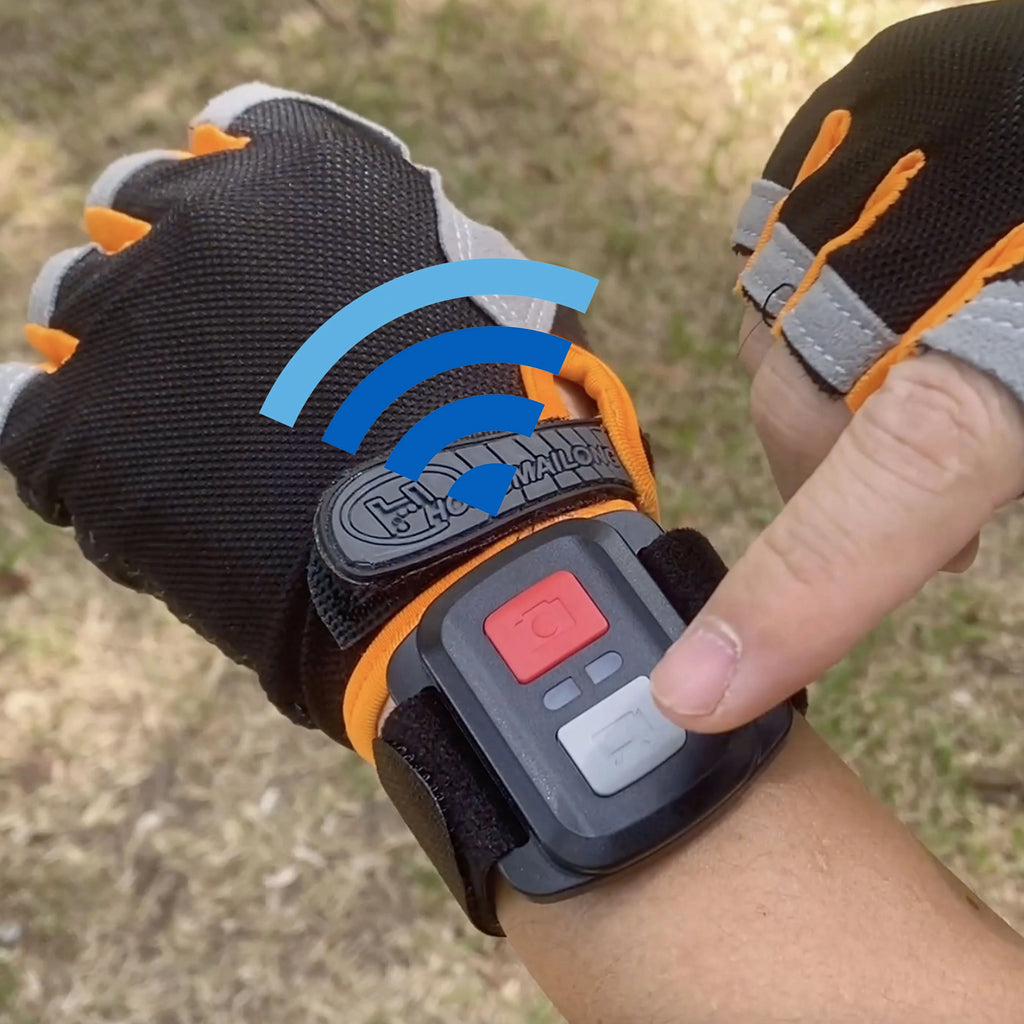

Remote Control Support: Yes

Removable/Replaceable Battery: Yes

Sensor Size: 1/3 inches

Sensor Size (inches): 1/2.3 inches

Supporting Language: Japanese,French,German,Spanish,Portuguese,Russian,English,Polish,Korean,Dutch,Latin American Spanish,Simplified Chinese,Traditional Chinese Style

Touch Screen: No

Video Format: MP4

Video Resolution: 5k

WIFI Support: Yes

Waterproof: Yes

Weight: 101g-150g

Wideangle: 170°

Zoom Magnification: 2X-4X

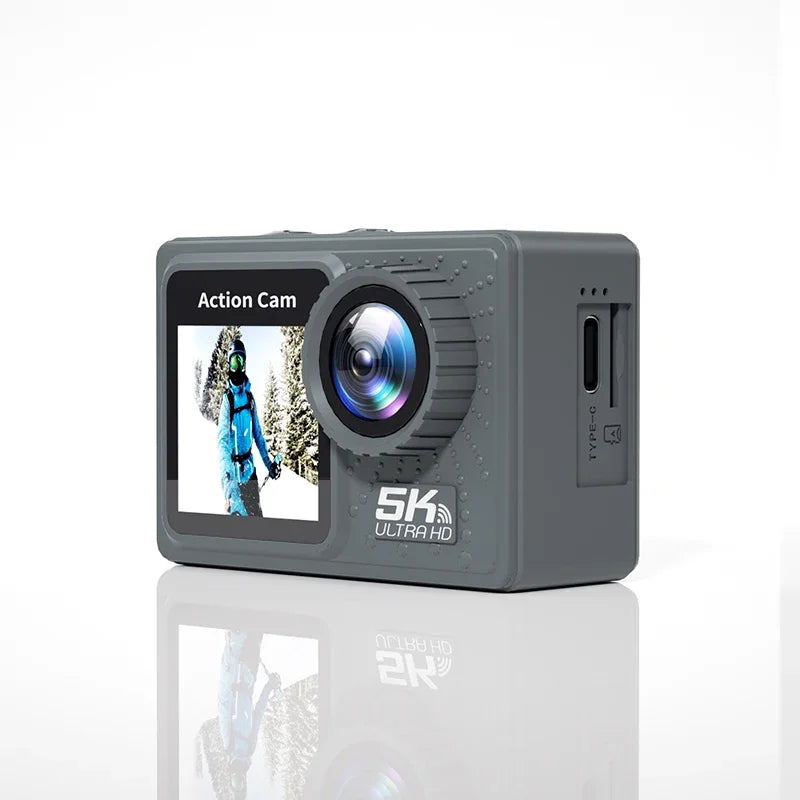

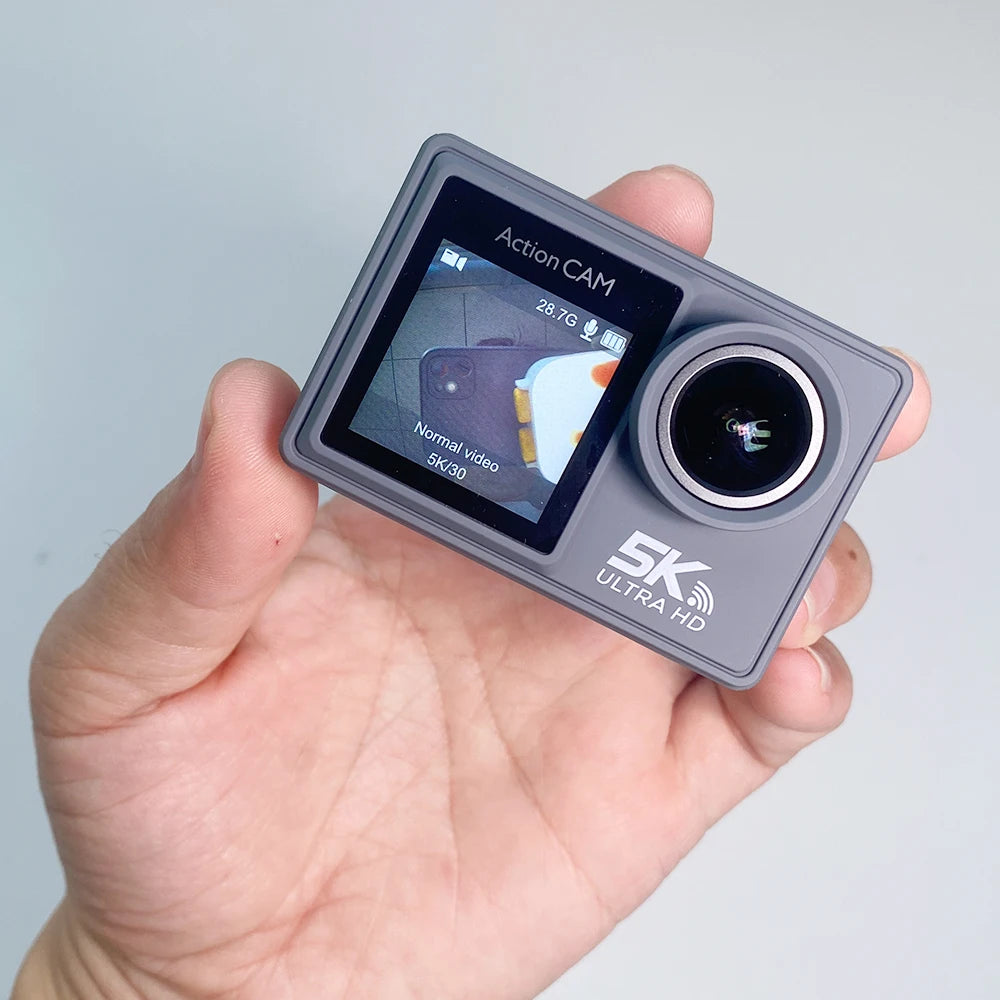

cerastes Model: AT-M40R

Operation note：

1. This product is high precision products, do not fall or impact.

Parameter：

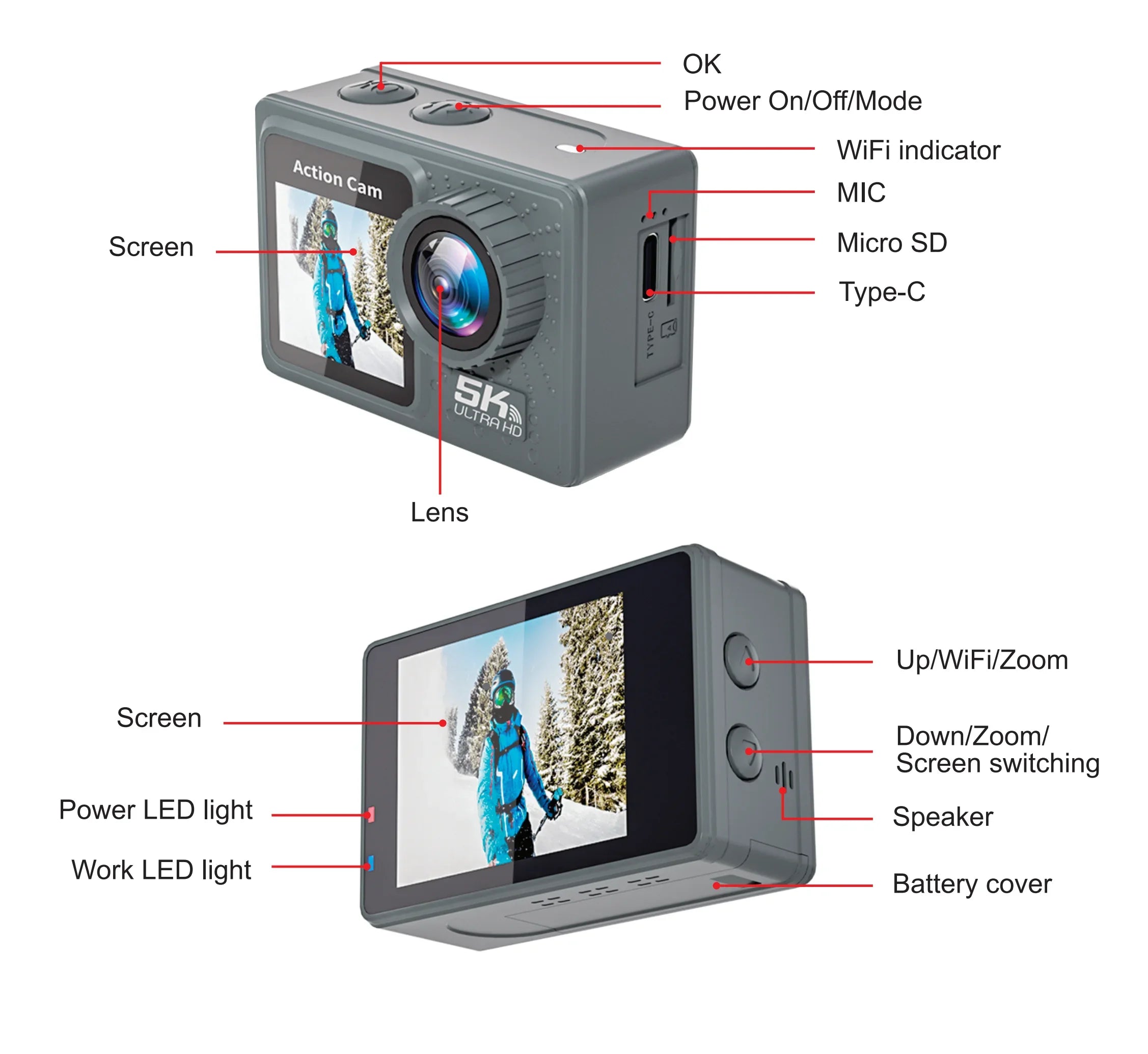

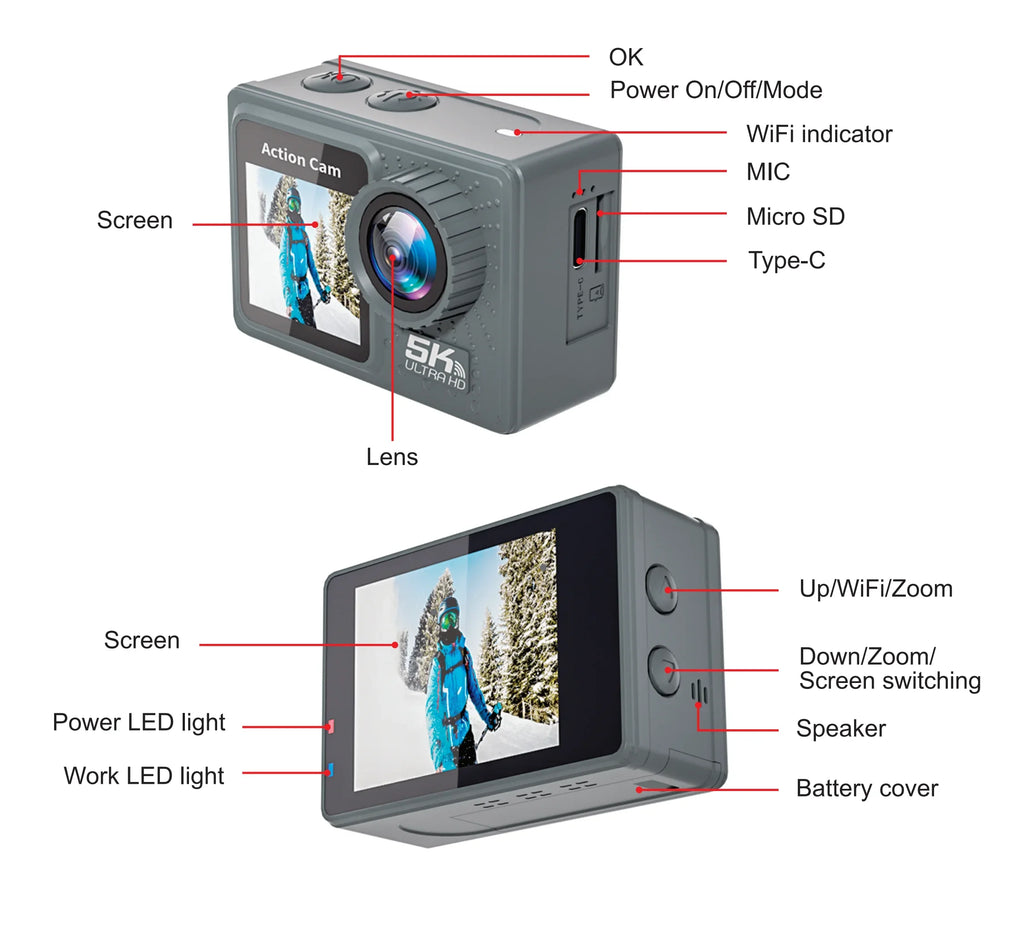

Use operation instructions：

1. Insert Micro SD card

Note: Please select the brand MicroSD card, formatted on the computer and then use, ordinary neutral card can not guarantee the normal use of work.

2. Install and remove the battery

A. Pull the cover down can open the battery cover.

B. According the battery marked positive and negative symbols and arrows indicate direction, the correct battery into the camera until the installation is in place.

C. Battery power indicator: please refer to the icon.

D. Remove the battery, removed out of the battery after open battery cover.

3. Battery charging

A. With USB line connection to computer or power adapter, the camera can be charged.

B. Can charging while recording.

C. Shutdown state can also charge.

4. Camera on/off

A. Long press and hold the boot key 3-5 seconds can turned on / off the camera

B. Open screen that boot, turn off the screen that is off.

5. Turn WiFi on/off

Turn on WIFI: Long press the UP button to open WiFi.

Turn off WIFI: Short press the UP button to turn off WiFi.

6. Mode conversion(mode)

After booting up, short press on/off key. You can switch between recording/photographing.

7. Indicator light

Work indicator light: Blue light, flashing during operation; After the work is completed, the blue light remains on.

When turning on WiFi, the blue light flashes; After WiFi connection, the blue light remains on.

Charging indicator light: Red light, always on during charging, fully charged, red light off.

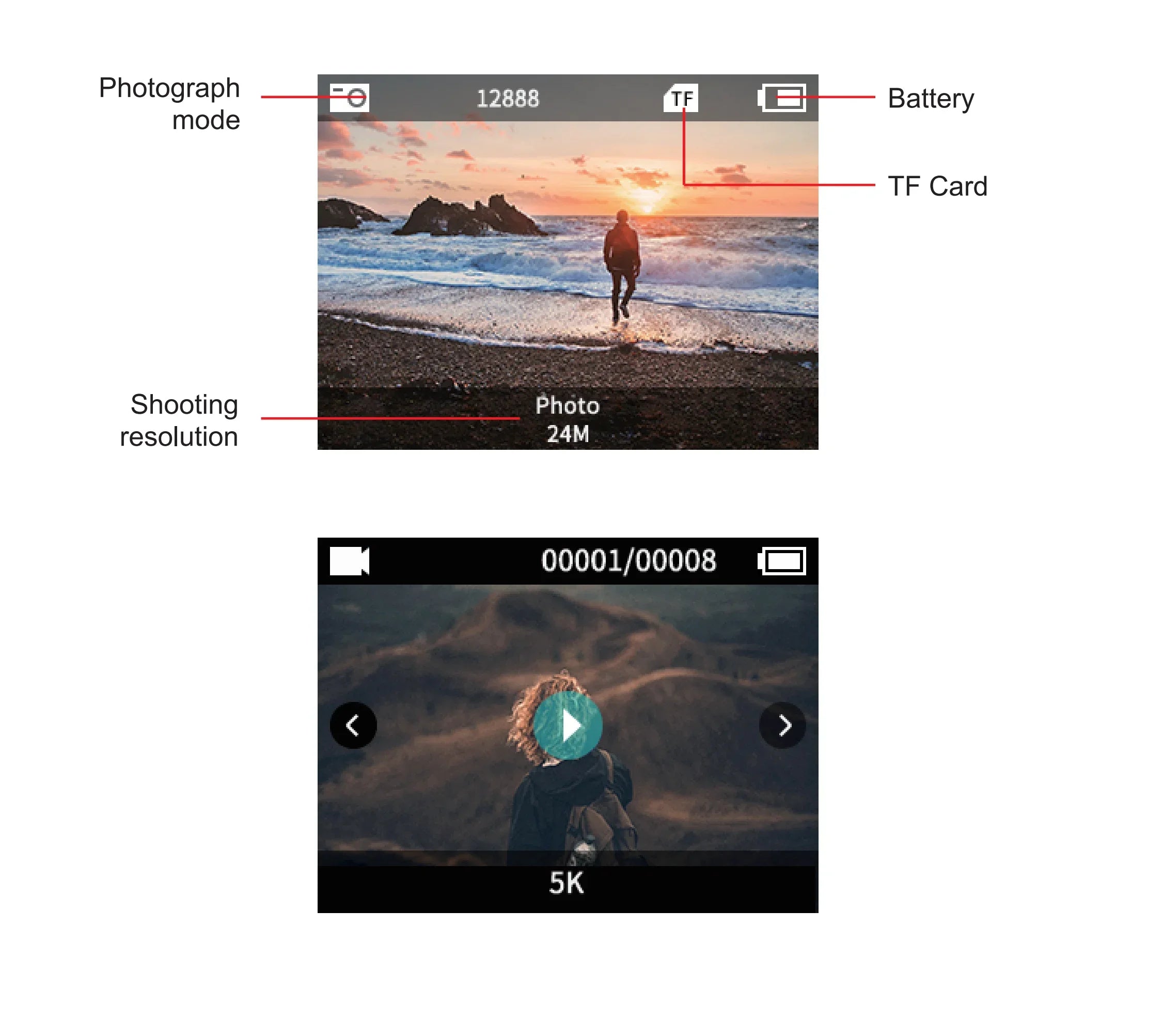

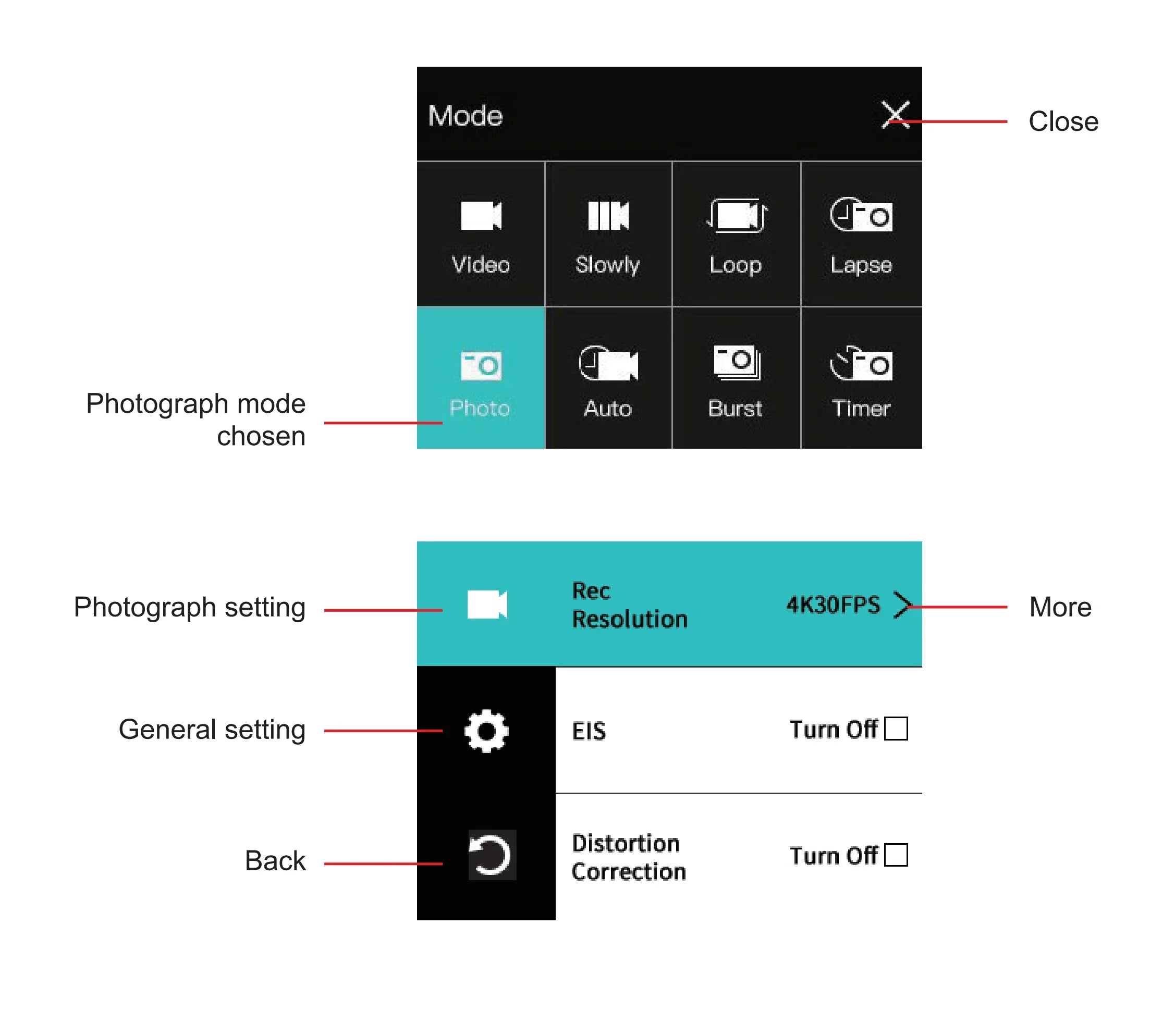

8. How to set photography and photography options

a. Recording: The camera enters recording mode and presses the confirm button to start recording. At the same time as recording,

the symbol above the screen flashes, and then press the confirm button to stop recording, At the same time, the sign

stops flashing.

Recording mode: Video, Slowly(1080P 4X/1080P 2X/720P 8X/720P 4X), Loop(2 Min/3 Min/5 Min), Lapse(0.5 Sec/1 Sec/2 Sec/

5 Sec/10 Sec/30 Sec/60 Sec).

b. Turn on the power for the camera and camera settings, enter the mode button to select the camera mode, and when

there is a camera icon in the upper left corner of the screen, enter the camera mode at this time, and press the confirm

button to take a photo.

Photo mode: Photo, Auto(3 Sec/10 Sec/15 Sec/20 Sec/30 Sec), Burst(3P/s, 5P/s, 10P/s), Timer(3 Sec/5 Sec/10 Sec/20 Sec).

C. Store, play, and delete

After the video recording is completed, use the data cable to copy the recorded video to the computer for playback, or take out the

memory card and use the card reader to read the image data in the card.

File deletion: In the file playback interface, long press the OK key to delete a single file.

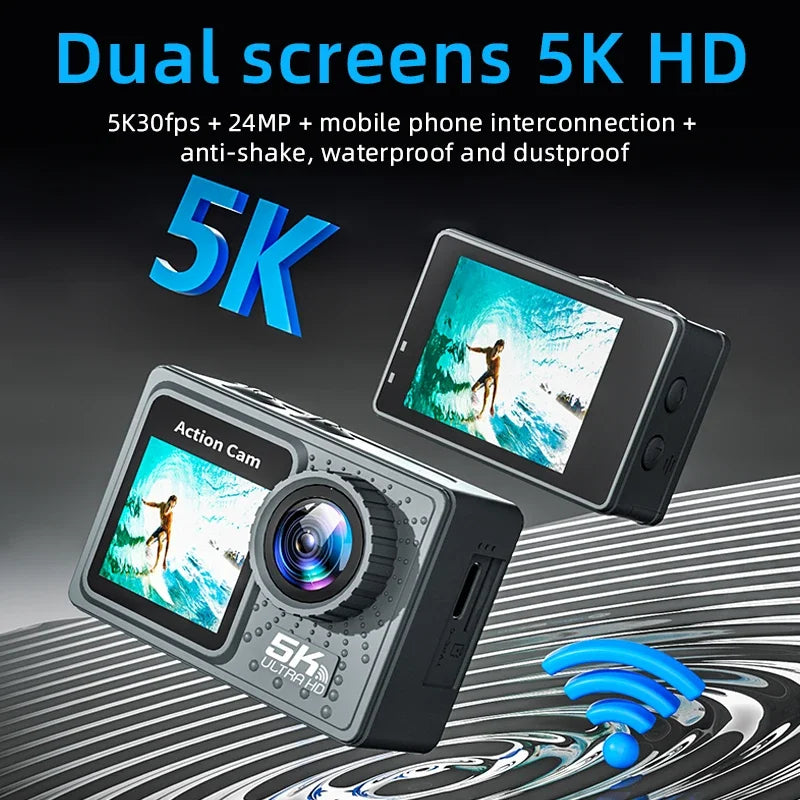

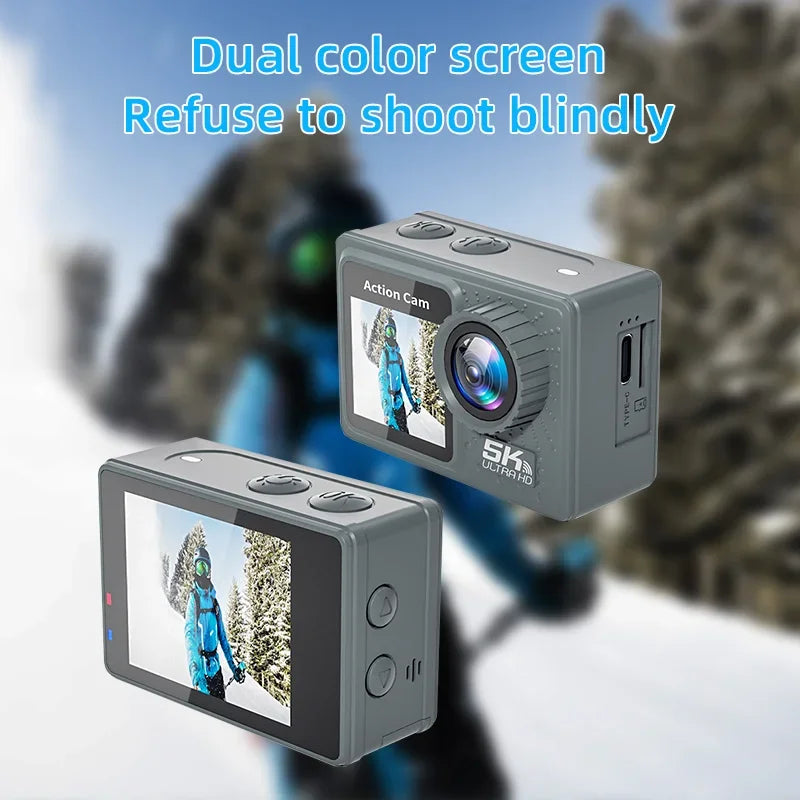

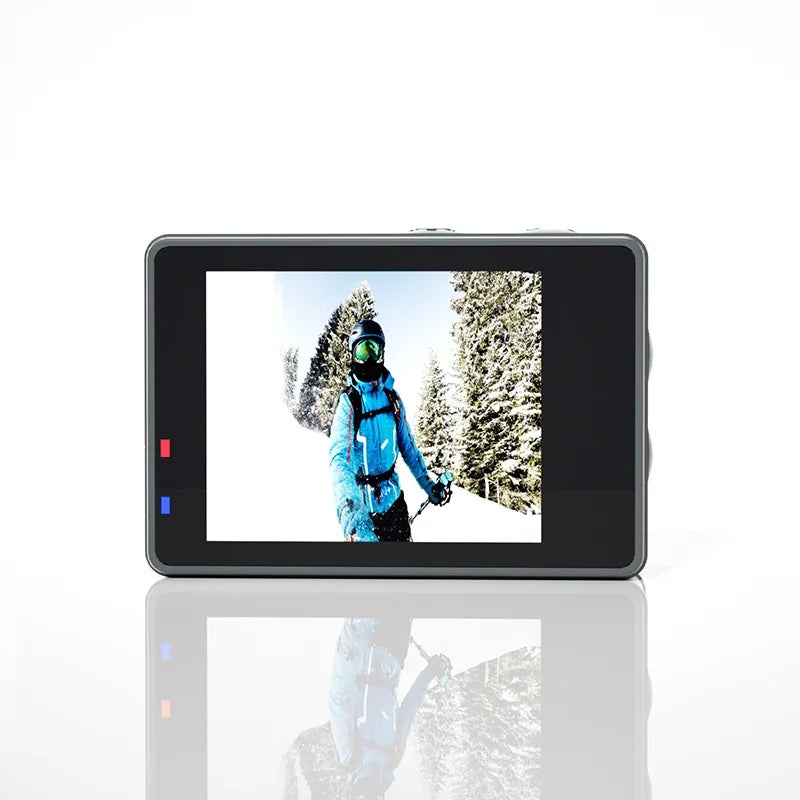

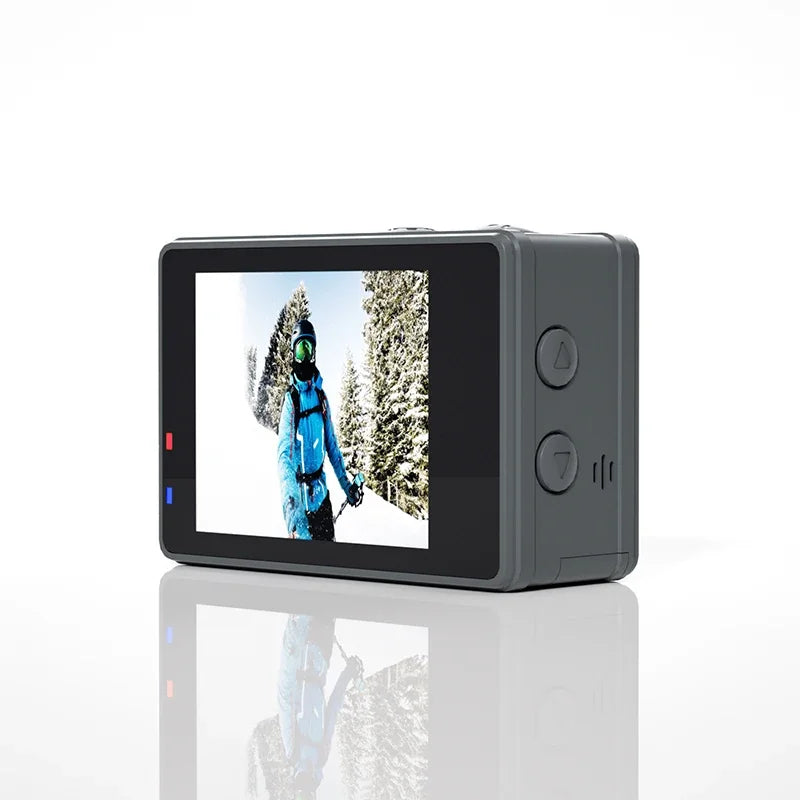

9. Switch between large and small screens

Long press the key to switch the screen size (dual screens cannot be displayed at the same time)

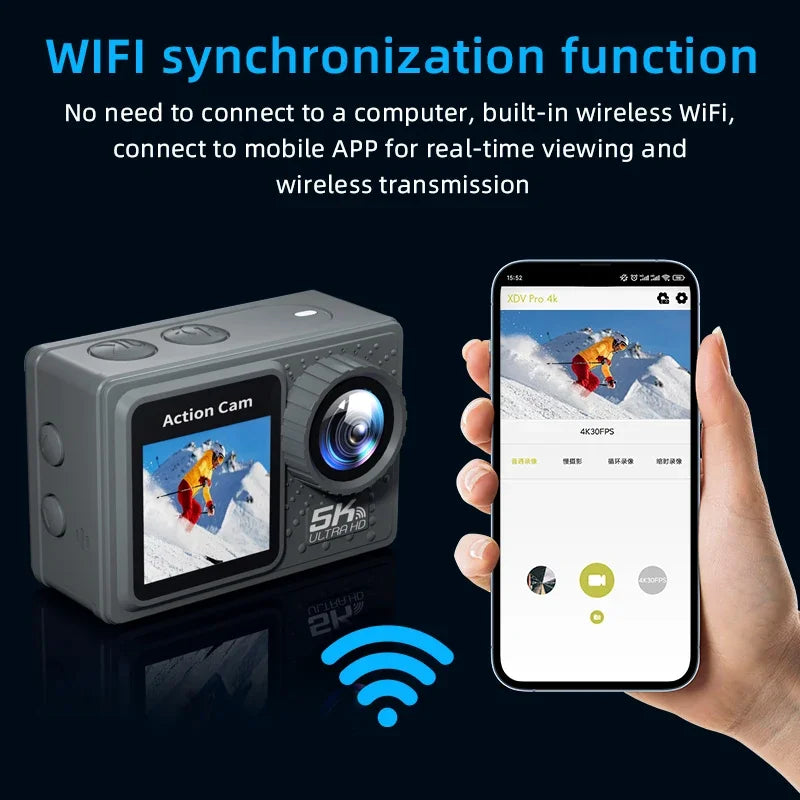

10. WiFi install and use

Before use the WiFi function, please download and install the application “ XDV PRO ”on your smart phone.

Note:earch “XDV PRO” from app store for lOS; Search“ iSmart DV2 "from Android Play Store for android.

Steps to connect WiFi.

A. After powering on, long press the up button to open WiFi, and the screen will display "WiFi Information"

B. Open the WiFi on your phone, searching the wif SSID" X17-******" and connect (the original password is

1234567890):

C. Open “XDV PRO” APP program ,with the APP, you can real-time preview is shooting pictures, remote video, photos,

fileplayback / download / delete / share.

D. APP install guide, the phone system requires Android 4.1 and above or lOS7 or above, scan the “XDV PRO” APP twodimensional code, press the prompts to complete the installation.

Search“XDV PRO”from App Store for IOS

Search“XDV PRO”from Android Play Store for android
